Description:

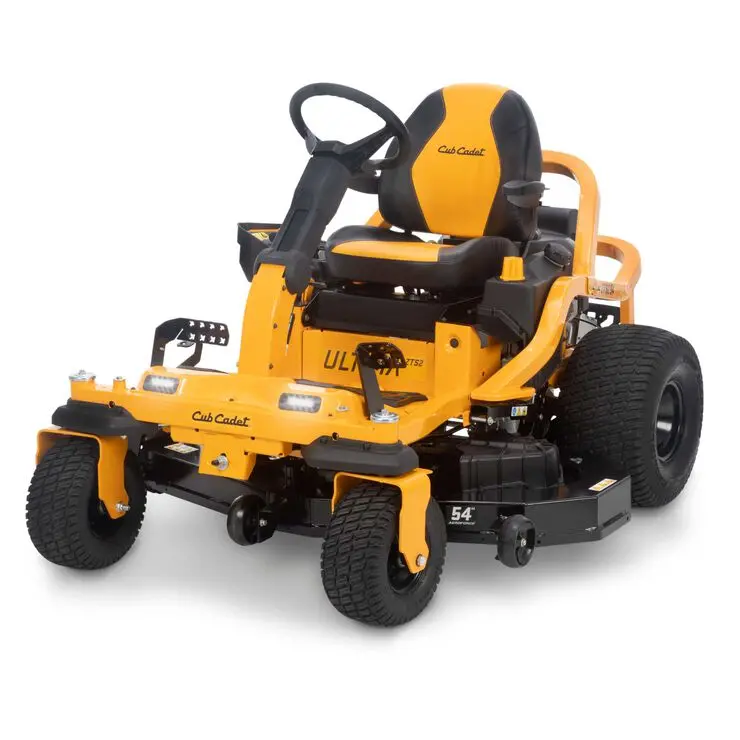

The Cub Cadet® Ultima Series ZTS2 54 is a 54-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ fabricated deck and Synchro-Steer™ technology, which helps provide a high-quality cut with few clumps and an even finish. The Synchro-Steer™ technology offers 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees. The mower also has dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look.

Features:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 24 HP*/747cc Kohler 7000 Series PRO V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for 7.5 MPH forward (3.5 MPH reverse) ground speeds
• 54-in. heavy-duty AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.
• Compact AGM battery is designed to delivers a premium experience with a longer lifespan and lower maintenance compared to traditional lead acid wet batteries for reliable starting season to season.

Specification:

Engine

• Brand: Kohler®
• Model: 7000 Series PRO
• Model Number: KT724
• Displacement: 747cc
• Horsepower: 24 HP
• Starter: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 2800
• Drive Type: Hydrostatic
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h

Cutting Deck

• Cutting Width: 54 in
• Material: 11-gauge fabricated steel
• Blade Count: 3
• Blade Engagement (PTO): Electric
• Deck Lift: Foot pedal with dial adjust
• Cutting Height Range: 1″ – 4.5″
• Height Adjustment Positions: 15
• Deck Wash: No
• Anti-Scalping Wheels: 3

Chassis

• Frame: 2″ x 2″ tubular steel
• Turning Radius: 0° (true zero-turn)
• ROPS: No
• Tow Hitch: Yes
• Corrosion Protection: Yes

Controls & Comfort

• Steering Control: Steering Wheel (Synchro-Steer™ Technology)
• Brakes: Disc
• Cruise Control: No
• Seat: 20″ High Back with Armrests
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels

• Rear Tires: 20″ x 12″-8″
• Front Tires: 13″ x 6.5″-6″
• Tread Pattern: Turf Master / Multi Trac

Additional Features

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Hand Lever

Model & Warranty

• Model Number: 17ASGGY3A10
• Residential Warranty: 3-Year Unlimited Hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: Not applicable
