Description

Description:

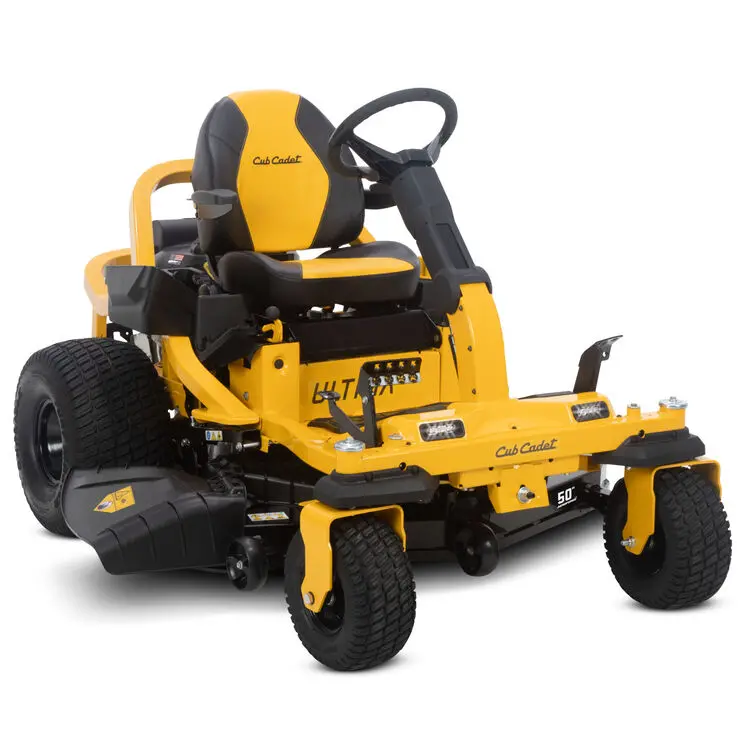

The Cub Cadet® Ultima Series ZTS2 50 is a 50-inch zero-turn lawn mower with a 24 HP engine. It features an AeroForce™ fabricated deck and Synchro-Steer™ technology, which helps provide a high-quality cut with few clumps and an even finish. The Synchro-Steer™ technology offers 4-wheel control for better stability when mowing on hills and slopes up to 20 degrees. The mower also has dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look.

Features:

• Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees
• A 24 HP*/747cc Kohler 7000 Series PRO V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
• Dual hydrostatic transmissions allow for 7.5 MPH forward (3.5 MPH reverse) ground speeds
• 50-in. heavy-duty AeroForce™ fabricated deck engineered to deliver a premium cut with minimal clumps, fine clips and evenness.
• Compact AGM battery is designed to deliver a premium experience with a longer lifespan and low maintenance compared to traditional lead acid wet batteries for reliable starting season to season.

Specification:

Engine

• Brand: Kohler®
• Series: 7000 Series PRO
• Model Number: KT724
• Displacement: 747cc
• Horsepower: 24 HP
• Starter Type: Electric (Ignition Key)
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Oil Capacity: 2.0 qt. US (1.89 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Governor: Mechanical
• Choke: Separate choke
• Fuel Delivery: Carburetor
• Air Filter: Dual element
• Oil Filter: Yes

Battery

• Battery Capacity: 210 CCA
• Type: AGM (Absorbent Glass Mat)
• Voltage: 12V

Drive System

• Transmission Brand: Hydro-Gear
• Transmission Model: ZT 2800
• Drive System: Hydrostatic
• Forward Speed: 7 MPH (11.3 km/h)
• Reverse Speed: 3.5 MPH (5.6 km/h)

Cutting Deck

• Cutting Width: 50 in
• Deck Material: 11-gauge steel
• Deck Construction: Fabricated
• Blades: 3
• Engagement (PTO): Electric
• Deck Wash: No
• Deck Lift: Foot pedal with dial adjust
• Cutting Height Range: 1″ – 4.5″
• Deck Height Positions: 15
• Anti-Scalping Wheels: 3 gauge wheels

Chassis & Frame

• Frame: 2″ x 2″ tubular steel
• Turning Radius: 0° (Zero-Turn)
• ROPS (Roll Over Protection): No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Steering Wheel

Comfort

• Seat Type: 20″ high-back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: No

Wheels & Tires

• Rear Tires: 20″ x 12″-8″
• Front Tires: 13″ x 6.5″-6″
• Tire Tread: Turf Master / Multi Trac

Additional Features

• Series: Ultima Series™ ZTS
• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlights: Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Hand Lever

Model & Warranty

• Model Number: 17BSGGY2A10
• Residential Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: Not applicable
