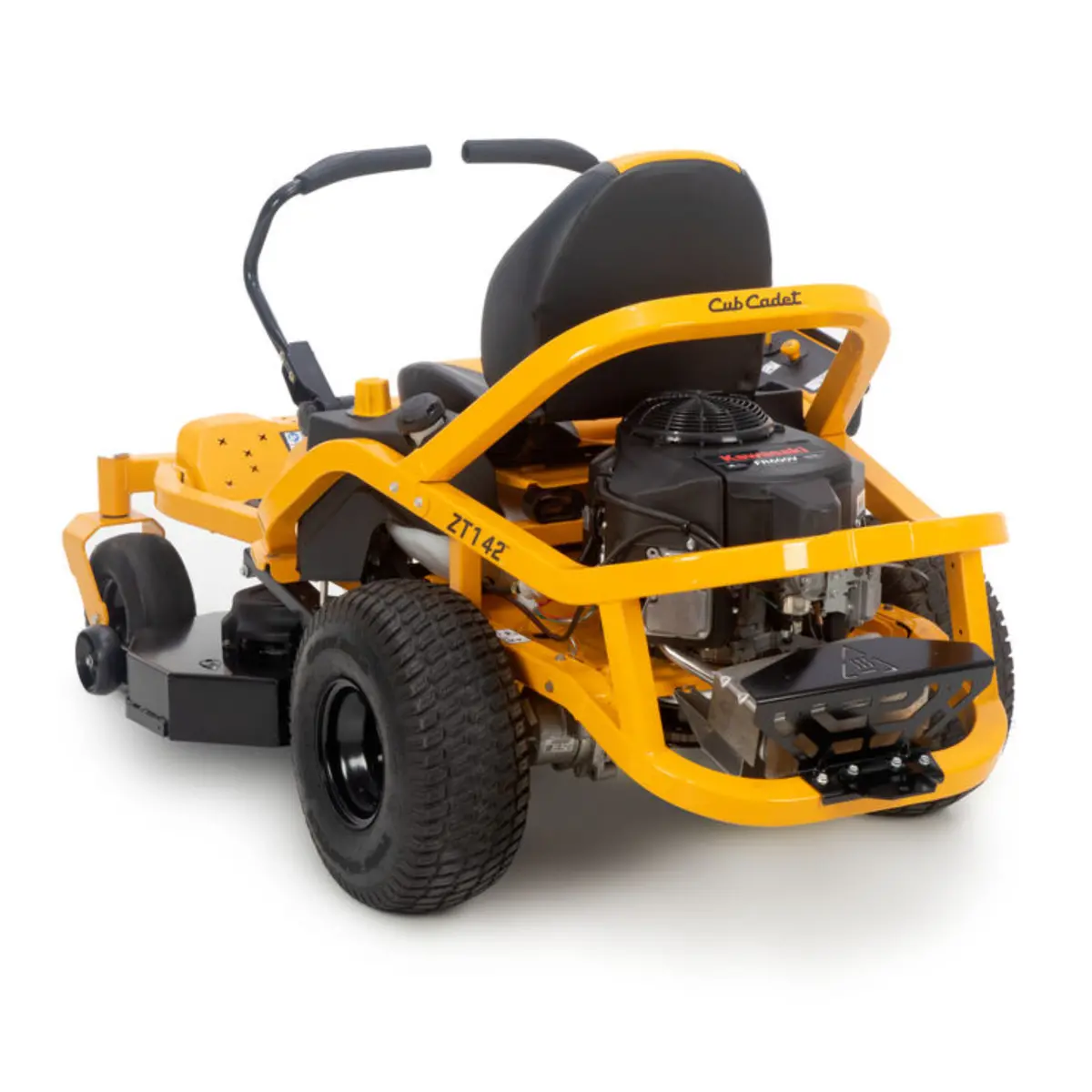

DESCRIPTION:

KEY FEATURES:

• A 18 HP/726cc Kawasaki FR691 twin-cylinder OHV engine delivers high-performance power to tackle your yard
• Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
• A continuous square 2 in. x 2 in. tubular steel frame with fully e-coat lower frame and triple guard corrosion defense system, a multi-step process that electronically applies automotive-grade corrosion resistance with meticulous care to protect against wear and tear

SPECIFICATION:

ENGINE

• Engine Brand: Kawasaki®
• Engine Model: FR Series
• Engine Model Number: 600V
• Engine Displacement: 726cc
• Engine Output: 18HP
• Starter Type: Electric
• Fuel Tank Capacity: 3.5 gal. US (13.25 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 1.8 qts. US (1.7 L)
• Lubrication: Fully pressurized
• Charging System: 12 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Dual element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

BATTERY

• Battery: 210 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

DRIVE SYSTEM

• Transmission: Hydro-Gear EZT 2200
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

CUTTING DECK

• Deck Cutting Width: 42 in
• Deck Wash: No
• Deck Material: 11-gauge steel
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Two
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1” – 4.5”
• Anti-Scalping: Two gauge wheels
• Deck Positions: 15

WARRANTY

• Warranty: 3-year unlimited hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime Limited
• Commercial Warranty: No

CHASSIS

• Frame: 2” x 2” tubular steel
• Turning Radius: 0°
• ROPS: No
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

CONTROLS

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

COMFORT

• Seat Type: 20″ high back
• Armrests: No
• Seat Adjustment: Knob

WHEELS

• Rear Tires: 20″x 8″-8″
• Front Tires: 11″x 6″-5″
• Tire Tread: Turf Master / Multi Trac

ADDITIONAL SPECIFICATIONS

• Hour Meter: No
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated
• Model Number: 17RIEACE010

SPECIFICATIONS

• Series: Ultima Series™ ZT
